NEW! SSD5000 MK II Humidifying Intake Air Tower

Description

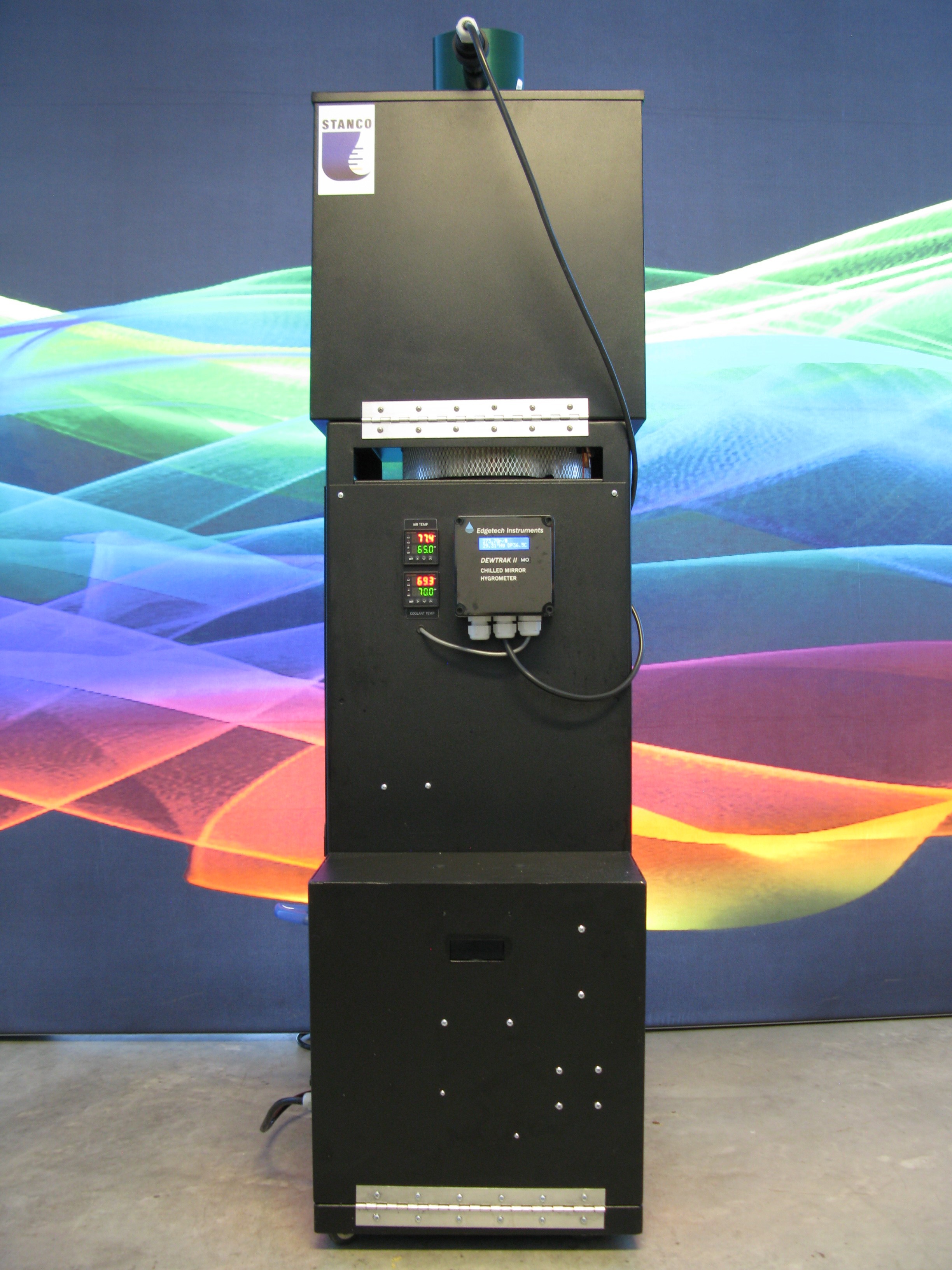

Humidifying Intake Air Tower SSD5000 MKII

SSD5000 MKII StanCo Scientific Humidifying Intake Air Tower with DewTrak II-MO™ Control

We have extensive experience with closed loop cooling systems in other types of instrumentation. Taking that knowledge forward and adapting it to the issues related to the cooling of the carbs and condensers on octane engines. TheSSD5000 MK II has integrated a heavy duty vaporizer into the system controlled with a Chilled mirror controller to monitor the grains per pound of humidified air going to your engine.

Cooling

Solves common problems with existing systems.
The MK II now has independent PID controllers for the Bath, Carburetor cooling and Intake air.
Control for Carburetor cooling can be at the output of the tower or through an External temperature probe at the bowls for more precise control of carburetor cooling.
A semi-sealed 5 gallon reservoir for cooling carbs and intake air. This minimizes of microbial growth in the cooling system since there is no fresh air introduced to the system after it is setup and bled.
A 120 volt direct drive coolant pumping system that is easy to disassemble and clean if necessary.
Level sensor in the main reservoir that shuts down pump to prevent system damage or major leaks when fluid level drops past the set level.
Hinged lid to allow cleaning of cooling head offering complete access for cleaning.
Integrated solenoid controlled cooling system for quicker cooling. Cool Carburetors and intake cooling to your setpoint temperature.

Vaporizer

Separate system uses tap water to supply the atomization to the 6 liter water bath. The bath doesn’t need to be watched as it has an integrated fill valve in the incoming water line.
The factory life span of vaporizer disc is approximately 5,000 hours. This can be reduced or improved based on your water quality, and whether or not you maintain your vaporizer by cleaning the discs every three to six months.
The vaporizer doesn’t have ANY led’s. They just leak and cause failure, as well as promote algae growth in the tank. Only ceramic vaporizer disks are used for longer worry free operation.
Vaporizer will process 900 ml/ hour of 5 micron droplets.
Outlet to the engine has vanes to allow the air to gently swirl to mix the air and vapor minimizing and chance of stratification in the intake tube to the engine.

Humidity Control

The Edgetech Instruments DewTrak II-MO™ dew point / humidity transmitter is an optical chill mirror hygrometer designed to continuously measure the moisture content in gases. The instrument is powered by 24Vdc.
The DewTrak II-MO™ uses the chilled mirror dew point temperature condensation principle to determine the water vapor concentration in gas mixtures, and a platinum resistance thermometer to accurately measure that temperature. Outputs include 4 to 20mA, 0 to 5 Vdc, or 0-10Vdc and an RS232 serial port as well as electrically isolated relay contacts.
NEW! Model DX primary method chilled mirror dew/frost point sensor with an integral PRT temperature sensor. Offers a wide operating range and improved temperature stability.
4 wire PRT measurement for Dew Point and AT (optional)
±0.2°C Accuracy for both Dew Point and Temperature
Long term stability and repeatability
RS232, bi-directional, Serial Output for ease of reprogramming with stock port on the side of the instrument
Electronics housed in IP65 enclosure (Wall Mount)
Aluminum housing for other configurations
2 analog outputs (4-20mA / 0-5Vdc to 0-10Vdc selectable)
